Product Families / JUNIOR / 3-point lock double action

JUNIOR

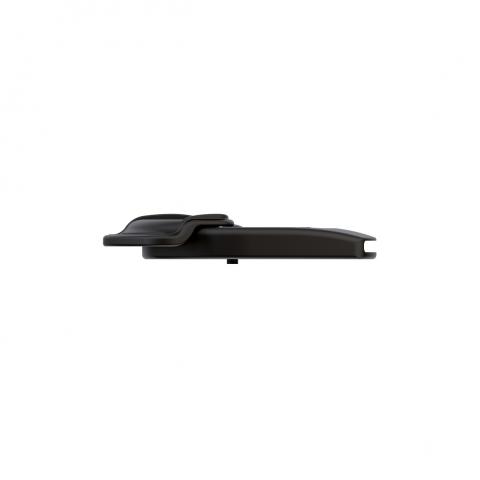

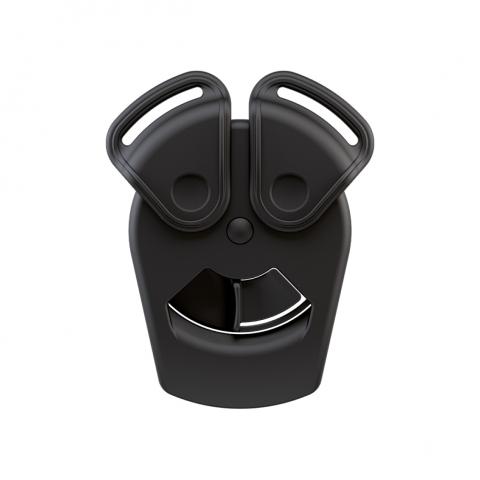

3-point lock double action
Article No
05171-000012(BLK)
Sector
children, transportation
Webbing width
25/40 mm
Weight
ca. 50 g
Dimensions (L x W x H)
96,6 x 77,0 x 13,5 mm
Material
PA66GF15/PC-ABS, steel (zinc coated), stainless steel
Static breaking load N
392 N
Static breaking load KG
40 kg
Colour
black
Opening mechanisms
push & slide
Assembly
strap, single bar
Order Samples
DESCRIPTION

The 3-point lock double action features high ease-of-use with double-action safety requirements: To open the system, one must first push down to disengage the mechanism and then slide laterally. Therefore, it is ideal for diverse applications with 3-point straps, e.g. strollers or highchairs (depending on the implementation of the fastener on the product).



APPLICATION AREAS

The 3-point lock is the perfect fastener technology for applications with three-point straps, e.g. baby buggies and similar strap systems (depending on the implementation of the fastener on the product).



FITTING

The 3-point lock can be attached in one or two layers to the ends of the respective straps (1 x 40,0 mm strap and 2 x 20,0 or 2 x 25,0 mm straps). Additionally, a 5-point attachment for the combination of shoulder and lap straps is available.


Not suitable for the safety-related use on children‘s car seats. Does not meet Group 0 or 1 standards for child car seats.

Use for safety-related applications only after successful suitability testing by the manufacturer.

CUSTOMIZATION

The 3-point lock can be customized with its own pad-printed logo and can be requested in different colours.
