Product Families / SNAP BUCKLE / flat 25 electrified 75cm without plug

SNAP BUCKLE
flat 25 electrified 75cm without plug
Article No
F8043-003101(BLK)
Sector
bags, professionals, transportation, children
Webbing width
25 mm
Weight
ca. 32 g
Dimensions (L x W x H)
61,2 x 40,6 x 25,2 mm
Material
PA66GF, PC
Static breaking load N
380 N
Static breaking load KG
38 kg
Colour
black
Opening mechanisms
slide laterally
Assembly
ladderlock single bar strap
cable length
75 cm
Order Samples
DESCRIPTION

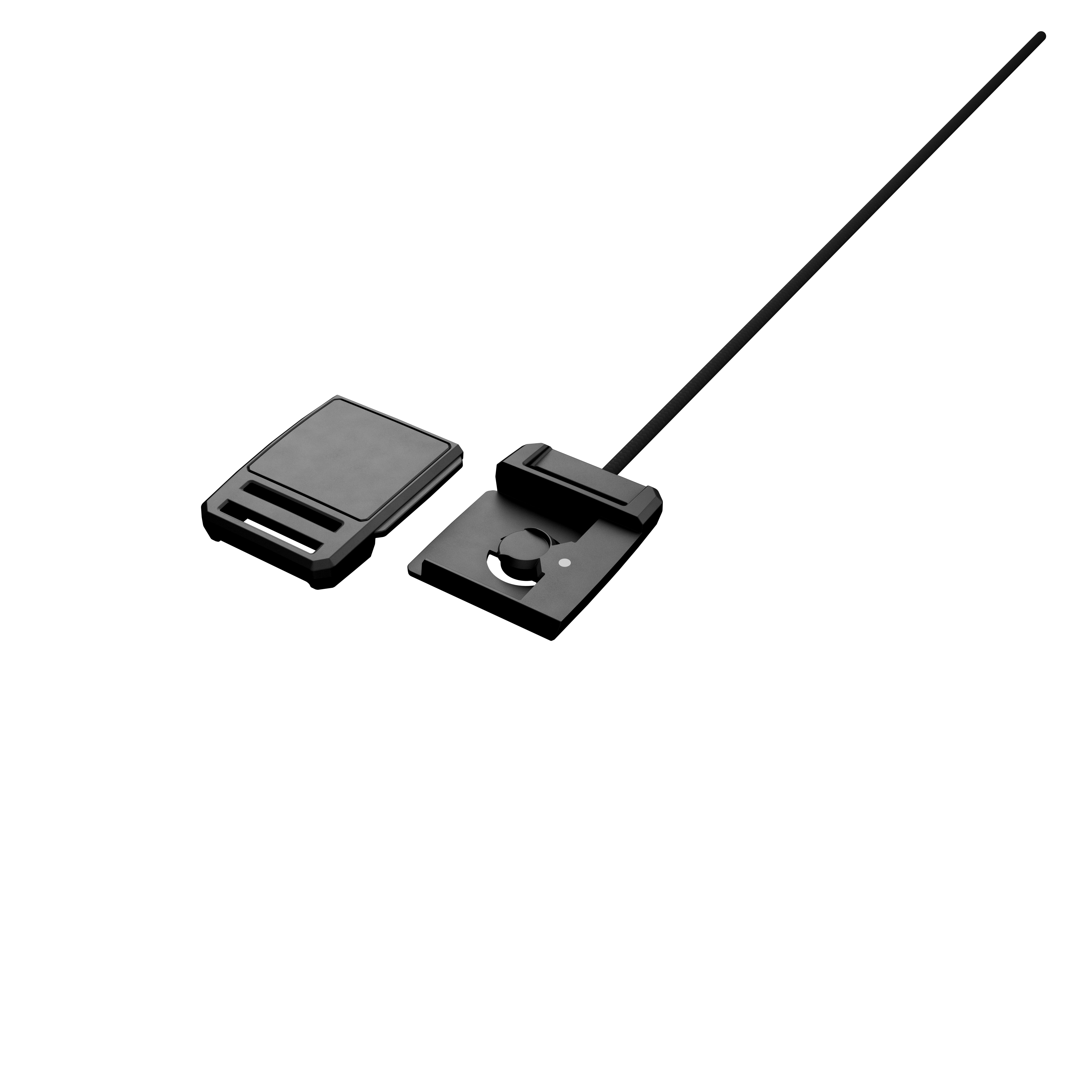

The SNAP buckle 25 electrified is an innovative combination of a fastener and a reed switch. The buckle can detect whether it is open or closed. This version is a CO (normally closed) version, meaning that the circuit is closed when the buckle is open – therefore, this version is ideal for safety applications such as airbag vests. It features a built-in LED which is individually controllable.

This version features a 75cm long cable and no plug.



APPLICATION AREAS

The SNAP buckle electrified is ideal for safety applications such as airbag vests. Naturally, it is also perfect for other applications which benefit from a fastener that simultaneously serves as a switch.



FITTING

The SNAP buckle electrified is designed for 25 mm straps.

Different configurations are available, e.g. with varying lengths of cable, with or without a plug or as CC version (normally open – the circuit is closed when the buckle is closed).



CUSTOMIZATION

The SNAP buckle flat 25 electrified is individually configurable upon request. This includes different cable lengths, with or without a plug and the circuit (normally open or normally closed). Additionally, the SNAP buckle 25 flat electrified can be customized with different colours or a logo.
